Overview

GrasCell® G-Web®  is a lightweight load bearing cellular confinement system, designed to stabilise the ground especially in slopes, acting as a barrier to soil erosion.
Manufactured from high-density polyethylene (HDPE) perforated strips, ultrasonically welded together to form a matrix of flexible honeycomb structures, the paver can be collapsed or expanded like an accordion to suit site conditions. The honeycomb structures stabilises the earth infill, protects roots and distribute loads evenly whilst the perforated walls facilitate water drainage and multi­dimensional root growth.

AREAS OF APPLICATION

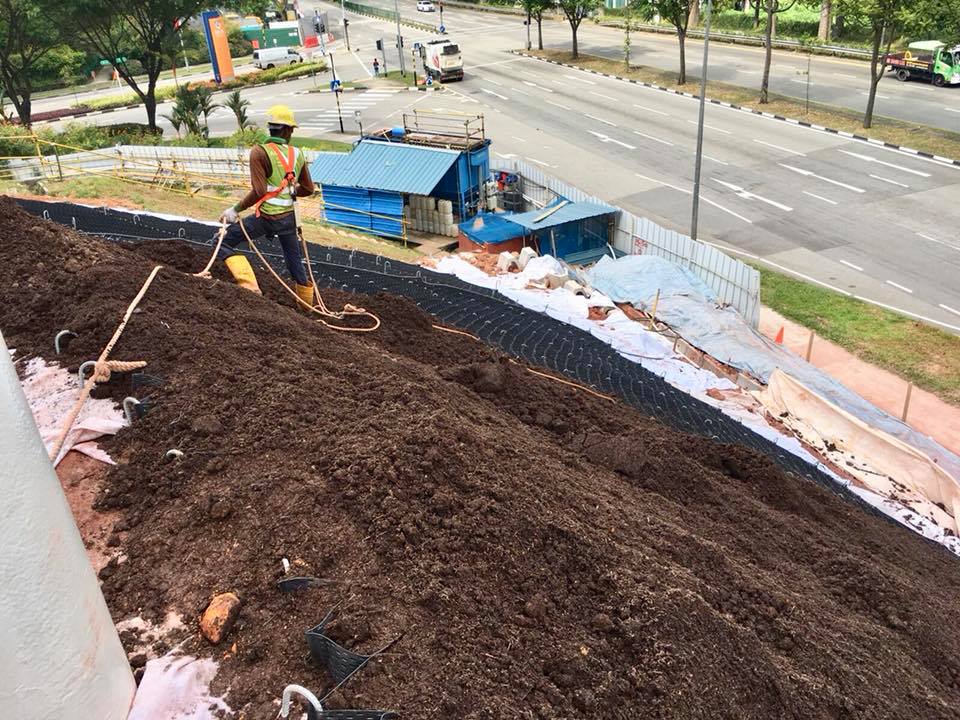

GrasCell® G-Web® applied to areas such as slopes. Designed to stabilise the ground, acting as a barrier to soil erosion, perforated walls facilitate water drainage and multi­dimensional root growth.

Specifications

Product GrasCell® G-Web
  Regular Cell Large Cell
Material HDPE

Paver Size:

Height (mm)

Length (mm)

Width (mm)



100

2,440

6,100



150

2,440

12,190

Coverage (m2) 14.9 29.74
No. of Cells (per m2) 20 20

Cell Size

Length (mm)

Width (mm)



203

244



406

488

Wall Thickness (mm)

>1.3

Density (g/cm3) 0.94
Carbon Black Content (%) 1.2 - 2.2
Seam Peel Strength (N) 2150
Color Black
